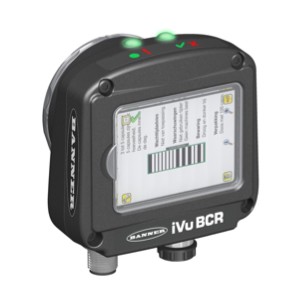

IVU BCR Series

Key Features

  • Reads a broad range of 1D and 2D barcodes, including damaged, distorted, and other difficult-to-read codes.
  • Capable of reading multiple barcodes in any orientation in a single inspection.
  • Setup, manage, and monitor inspections using an integrated touch screen, remote touch screen or PC interface.
  • Ethernet and serial communication protocols simplify device integration and enable IIoT data collection.
  • Rugged, IP67-rated housing ideal for tight spaces and industrial environments.
  • Numerous integrated lighting options simplify installation and optimize contrast.
  • Interchangeable lenses, including a wide range of standard and C-Mount options to meet the needs of any application.

Applications

  • Industrial barcode verification on clear labels.
  • Robotic cell industrial barcode inspection.
  • High-speed 2D barcode inspection.
  • Barcode presence and rotation.
  • UV barcodes for traceability.
  • Pharmaceutical insert verification.
  • Barcode scanning on pallets.

Capable of reading the following codes:

1-D and Stacked 2D Postal
Code 128 Data Matrix POSTNET
Code 93 QR Code Intelligent Mail Barcode
Code 39
Pharmacode
Codabar
Interleaved 2 of 5
UPCE
UPCE-Addon
EAN13
EAN13-Addon
EAN8
PDF417
DataBar
DataBar Limited
DataBar Expanded
